The 3-ft.-tall letters are router-cut white ACM board faced with metallic blue and orange high performance vinyl. The yellow graphic is finished with exterior acrylic paint. Steve Luck, Sign Magic, Godfrey, Illinois
Letters are black PVC board faced with printed vinyl with matte laminate mounted on a 48-by-66-in. background made from pallet wood. Braun Bleamer, Jet Signs, Palmerton, Pennsylvania

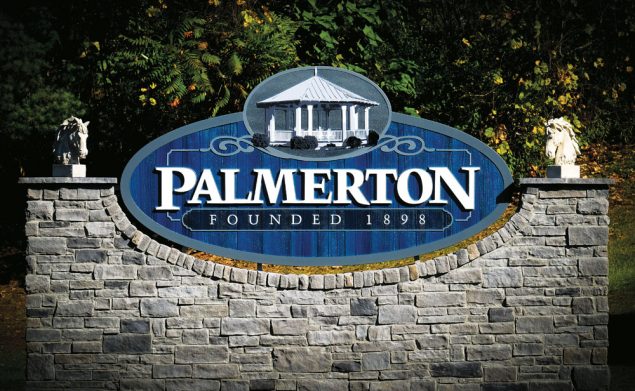

Stage-blasted plank effect background on HDU panel with ¾-in. PVC letters mounted on it. Braun Bleamer, Jet Signs, Palmerton, Pennsylvania
Sandblasted redwood panel with a hand-carved texture on the HDU letters. Josey Reinhardt, Davinci Signs, Jasper, Georgia

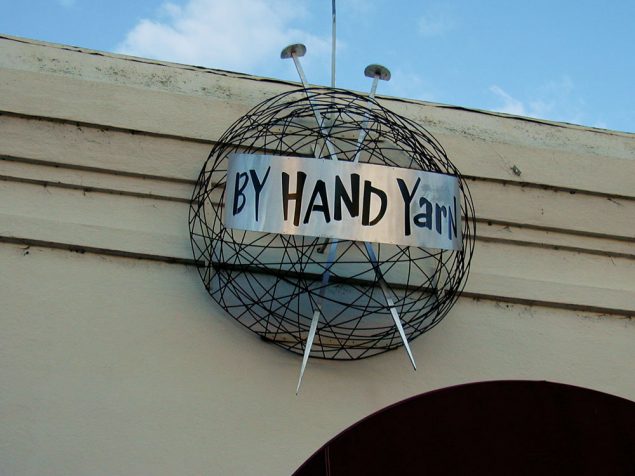

The lettering was cut from an aluminum panel then backed up by a matte black panel. The yarn ball was made of steel and allowed to rust, then clear coated so as not to stain the building. Knitting needles are aluminum. Judy Grossman, JG Signs & Designs, Sonora, California
Sandblasted cedar panel with HDU letters and ribbon panel. Josey Reinhardt, Davinci Signs, Jasper, Georgia
CNC-cut ½-in. painted acrylic letters stud mounted on black ½-in. Sintra PVC panel. Letters are finished with gloss Matthews Acrylic Polyurethane paint. Dennis Stanworth, Stanworth Signs, Walnut Creek, California

Substrate roundup: Balancing cost and performance

Knowing your options helps you get the most value from the materials


Posted on Friday, August 31st, 2018

Print Friendly, PDF & Email

Sourcelist: substrates

Aluminum composite material/ACM
3A Composites USA
Laminators Inc.
Mitsubishi Plastic Composites
Nudo Products Inc.
United Industries

Engraving materials
Duets by Gemini

Foam core
3A Composites USA
Encore Products
Gilman Brothers
United Industries

Laminated plywood
Laminators Inc.
Nudo Products Inc.

Medium density fiberboard/MDF

PVC board
3A Composites USA

High density urethane board/HDU
Coastal Enterprises
Corafoam HDU
SignArts Products

Wood panels
Allwood Sign Blanks
When it comes to substrates for signs, you have plenty of possibilities. A quick count on the website of a major sign supplier yields over 90 different signage substrate materials, and that’s not counting the thickness and color options.

Most of the substrates that sign makers use every day are not materials that are used every day in most other industries, such as construction. Many are specialized materials that found a home in the sign industry because of the unique characteristics they offer. You won’t find most of them at a big box home improvement store.

Every sign maker has their favorites— substrates that have proven themselves and work well with the shop’s production methods. At the same time, it’s important to step out of the comfort zone to take advantages of the benefits of other substrates.

Traditional standards Before the arrival of composites, plastics and foamed plastics, medium density overlaid plywood [MDO], aluminum sheet and solid wood panels were the most commonly used sign substrates for exterior use. MDO is strong and easy to cut, especially to custom shapes. Aluminum is smooth, comes prefinished and is relatively easy to fabricate.

It’s hard to beat the natural beauty of western red cedar. Laminated cedar sign panels are available in a variety of thicknesses and sizes.

ACM options Aluminum composite material [ACM], also called aluminum composite panels [ACP], see a lot of use for signage today. The cost of ACM panels can vary considerably, depending on composition, thickness of the aluminum and the flatness of the sheet. ACM comes in a wide variety of colors and finishes. ACM has either a solid plastic core or a corrugated plastic core. Solid core panels vary in core composition and thickness of the aluminum used on the two faces. The thickness of the aluminum skins can vary from as little as .05 to .2 or even more. Thicker skins add to the cost.

Corrugated panels are more rigid and weigh less than solid core panels of the same thickness. The aluminum skin is usually thicker than solid core materials. Common panel thicknesses range from 3mm to 10mm.

The core of lower cost panels may not be as flat as those on pricier panels. If you are printing on a flatbed printer, this can be an issue. A wavy panel can cause problems.

HDU for dimension High density urethane board [HDU] is a favorite for 3D signage. It’s stable, durable, easy to machine, carve and finish. It comes in several thicknesses and densities, which are given as the weight in pounds per square foot. The heavier the weight, the more dense and harder the board.

All HDU board brands are not the same. Different manufacturing processes yield products with different characteristics, so you will want to experiment compare them.

PVC board PVC board is a rigid plastic sheet that comes in several thicknesses and colors. It is a popular choice for signage because it is easy to mill and it’s paintable. Some brands are designed for long-term exterior use; others are for interior or shorter exterior applications. Finishes vary, too—some have a gloss finish while others have a matte, slightly textured finish. PVC is prone to expansion and contraction, so that must be accommodated when fastening and installing.

Exterior fiberboard panels Medium density fiberboard [MDF] is a wood fiber composition board. It is used in construction work and also sees use as a sign substrate. It is heavier than many other options, but is practical for CNC router work and other uses. Not all MDF panels are designed for exterior use, so use a product like Extira for exterior signage.

Not-so-typical substrates Creative sign making, of course, is not just about using conventional materials in conventional ways. Weathered barn board, corrugated tin, pallet wood, vintage timber and rusted steel panels—all have found their home as sign substrates. Out-of-the-ordinary substrates can add a lot of appeal to a sign.
